High Quality Customized Cartridge Heater for Plastic Mold Machine

The single head electric heating tube is mainly used for heating in the mold, installed in the mold hole, and can also be used for heating in 3D printer. The electric heating pipe is made of stainless steel SUS304 / SUS310 / SUS316 INCOLOY800 or INCOLOY840.

It can be customized according to customer requirements.

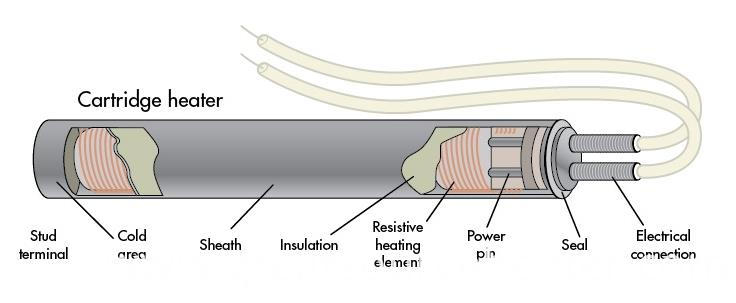

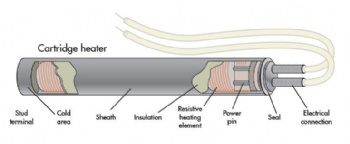

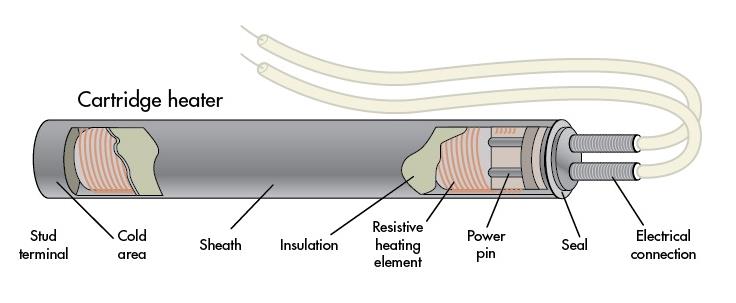

- Heater construction:

- Technical Data:

1. Material:SS304/SS316/SS321/Incoloy800 etc.
2. Insulation Material: High-purity Mgo
3. Resistant wire element: Ni-Cr or FeCr
4. Lead Connection Option: Crimped or Swaged leads
5. Lead and type of connection leads: 10" Fiberglass Standard
(Wire options: Teflon, silicone high temperature frber glass)
6. Cartridge Heater categories:
1). High power density (heat area surface power 10~25W/cm²)
Working temperature≤450 degrees.
2). middle, low power density (heat area surface power 5~11W/cm²)
Working temperature≤300 degrees.

- Applications:
- Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
- Telecommunications: Deicing, Enclosure Heater
- Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
- Food Service: Steamers, Dish Washers,
- Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

- When inquiry, pls kindly provide us:

1) If have drawing, it will be helpful.
2) Tube diameter, tube length, voltage, wattage, shape
3) Working temperature
4) Material requirement
5) Quantity
