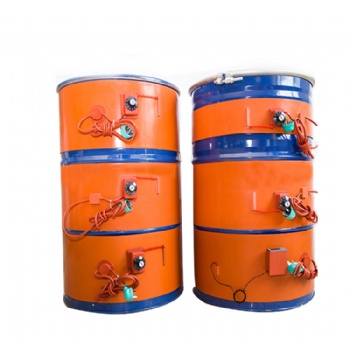

Silicon Rubber Flexible Drum Heater Band

Silicone Rubber Heating Pad is a kind of thin film which heaters upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high temperature die forming and aging heat treatment. Due to its high reliability, the product is highly competitive when comparing with other electric heating film products which normally have paste materials such as graphite paste or resistor paste, etc. coated on insulation materials. As a kind of soft red film which can be applied closely on different curved surfaces, the silastic heater can be fabricated in varies shapes and powers.

Data Sheet:

1.lnsulation material temperature: 250 ° C

2.The use temperature: 200 ° C

3. Insulation resistance: ≥5MΩ

4.Pressure strength: ≥ AC1500V/5S

5.Power deviation: ± 8%

6.Voltage range: 12V-380V

7.Unit power: 1.5W / CM2.

Any shapes can be customized to fit your device! Please do not hesitate to tell us your specifcations, we will be more than happy to give you best offers!
